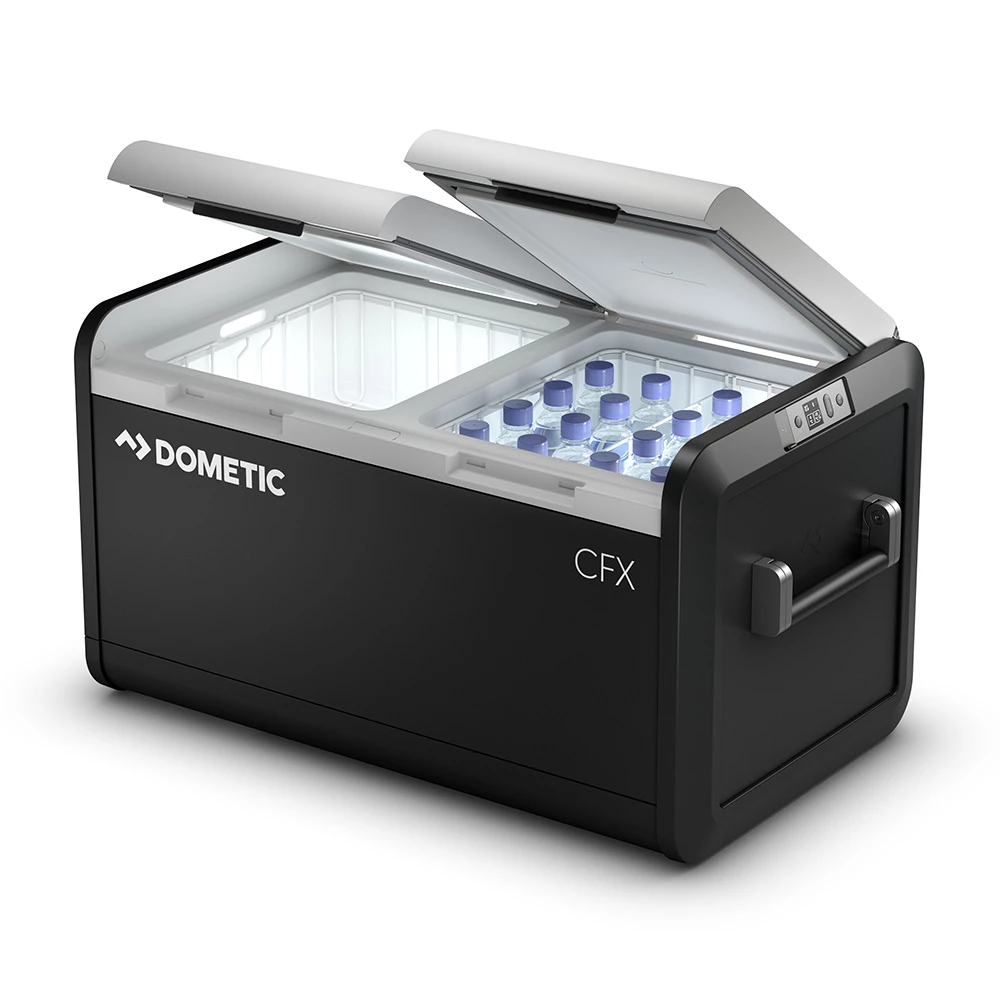

The ultimate portable fridge/freezer!

The Dometic CFX3 75DZ Portable Fridge/Freezer produces seriously impressive cooling, allowing you to bring more of the food and drinks you love wherever you go. Its robust design is built for tough outdoor use, while a convenient mobile app puts the control of your Dometic CFX3 at your fingertips. Dual zone storage compartments have independent temperature control which enables simultaneous cooling and freezing.

The power to be present

The Dometic CFX3 gives you the power to change your state of mind and put your well-being first. On-road, off-road, outback or in the backyard, your ordinary and extraordinary adventures will be fuelled by fresher, safer food, less waste and more confidence, giving you the power to be present in any moment.

Maximum efficiency and capacity

You can store an incredible amount of fresh food and drinks in the Dometic CFX3 thanks to the internal compartment design. The CFX3 eliminates the dairy compartment, which means more room for all your favourite foods. Choose how you organise the space with a removable wire divider and enjoy a more even distribution of cool air with the extended evaporator, now on all inner walls of the unit.

Track performance wherever you are

The CFX3 app provides a whole new level of control and connectivity. Download it for free in the App Store or Google Play Store, and connect to your powered fridge/freezer via your smartphone. Control and monitor the temperature of the fridge/freezer remotely, whether it’s from the front seat of your vehicle or in bed after a long day of exploring. Thanks to our user-friendly interface, it’s easier than ever to track the cooling status of your CFX3. If you happen to leave the lid of your CFX3 open, the app will send a notification to your smartphone telling you to close the lid. While powered, the app keeps detailed records of the temperature and power consumption history, so you know your limits on your next journey. Keep food fresh. Go and explore. Enjoy peace of mind.

Digital display for easy management

The CFX3 series features an easy to read high-resolution colour display panel which states the temperature and status of the fridge/freezer. Several protection systems are built into the display, including a scratch-resistant cover and IP65 rated housing to protect against dust and water splashes, so you can feel confident wherever you go. The upgraded USB port is now located in the display panel for a faster and more ergonomic way to charge your portable devices. The intuitive user-interface displays the voltage, Bluetooth/WiFi connection status and temperature in colourful graphics. The operating settings of your fridge/freezer can be adjusted at the press of a button with a simple menu.

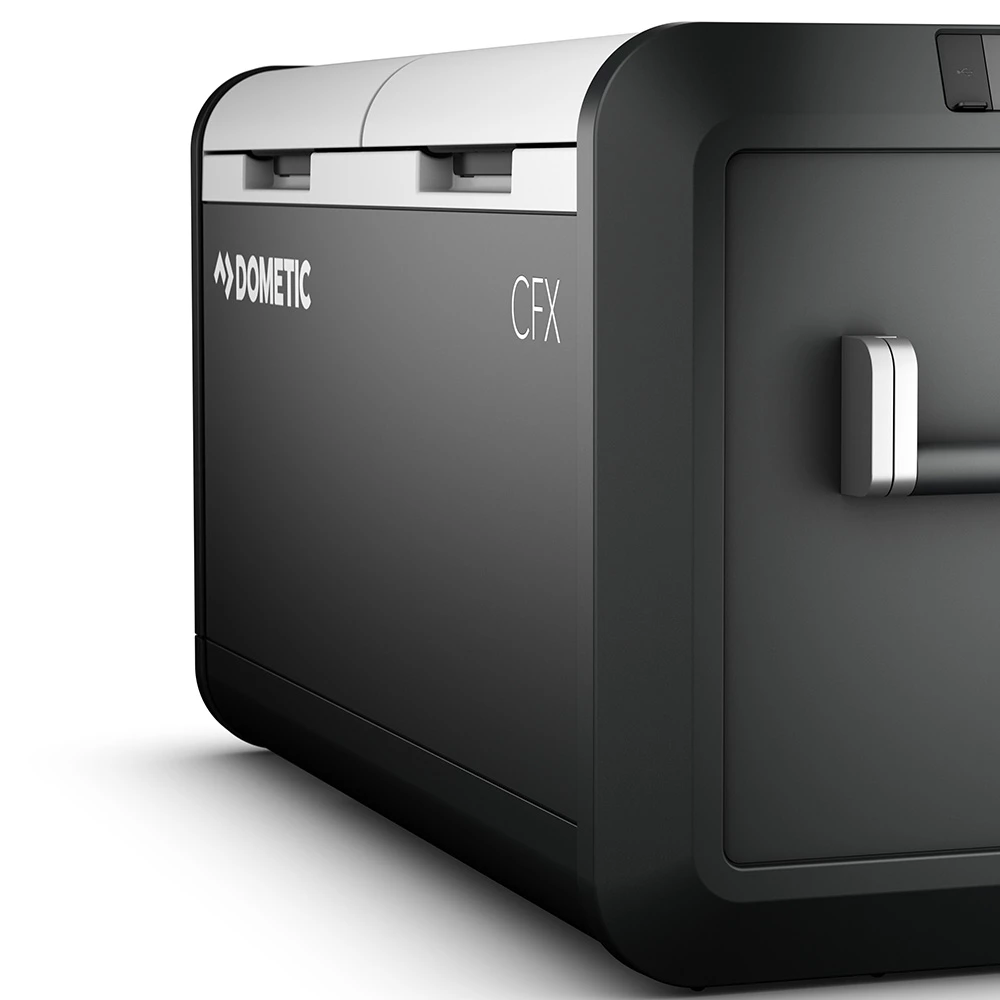

Seriously tough design

The Dometic CFX3 75DZ Portable Fridge/Freezer is marked with an IP44 rating. This verifies that the product has been tested and proved to have effective protection against solid objects larger than 1 mm, such as tools and small wires, as well as against splash water from any angle. In other words, your Dometic CFX3 75DZ Portable Fridge/Freezer is splash-proof and fit for the rigours of outdoor use.

Dometic CFX3 75DZ Portable Fridge/Freezer Features:

Generous storage capacity of 75L to fit 113 cans
heavy-duty yet lightweight ExoFrame construction with fender frame protected edges and aluminium alloy handles
Powerful VMSO3 compressor cooling technology efficiently refrigerates and deep-freezes to -22deg Celsius
Easy-to-read high-resolution colour display
Soft-touch buttons enabling seamless control and monitoring of fridge/freezer performance
CFX3 app allows tempereature control via Bluetooth or WiFi and provides performance history
3-stage battery protection system prevents dead car battery or allows deep draw on dual batteries
Dual storage compartments with independent temperature control for simultaneous cooling and freezing

Dometic CFX3 75DZ Portable Fridge/Freezer Specifications:

General

Model: CFX375DZ
Single or dual zone: Dual
Refrigeration technology: Compressor
Connectivity type: Bluetooth, WiFi
USB port: 5V, 2A
Basket: Yes
Threaded inserts in base for mounting: M6
Drain plug: Yes
Anti condensation coil: Yes
Interior light: Yes, LED
Certificates: RCM
Colour: Slate / Mist

Dimensions:

D x H x W: 495 x 472 x 892mm
Net weight: 27.8kg
Total volume (IEC 62552-3): 75.00L
Gross volume: 75.00L
Total storage volume: 75.00L

Electrical

Input voltage (AC): 100-240 V
Input voltage (DC): 12/24 V
Rated input current (AC): 1.12A at 100V, 0.47A at 240V A
Rated input current (DC): 9.6 A
Rated input power (AC) 59 W
Input frequency 50/60 Hz

Performance

Refrigerant, type: R134a
Refrigerant amount: 59g
Energy consumption 12 VDC (internal at Large4C/Small-15C, Ambient at 32 C): 3.04 Ah/h
Climate class (EN62552): N/T
Insulation type PU (Polyurethane)

Dometic CFX3 75DZ Portable Fridge/Freezer Operating Manual
