The ultimate portable fridge/freezer and ice maker!

The Dometic CFX3 55IM Portable Fridge/Freezer with Ice Maker lets you take control of outdoor adventures like never before. Enjoy fresher food at your fingertips thanks to Dometic’s market-leading VMSO3 variable-speed compressor with optimised software for better cooling, freezing and power consumption. The CFX3 features durable fender frames that protect the edges of the fridge/freezer, making it ideal for rugged trips. Strong, spring-loaded aluminium handles make it easy to lift and carry. Set the cooling temperature of your CFX3 on the TFT display screen and pack all your favourite foods. Download the CFX3 app and roam free from worry. Once your CFX3 is connected through your phone, you can set the ideal temperature, and get a detailed history of energy consumption and temperatures.

In a first for single-zone portable refrigeration, the Dometic CFX3 55IM produces ice even when the unit is set to refrigeration, thanks to the built-in ice maker. It comes with two removable ice trays for cold drinks no matter where you are or how long you’ve been away. The trays feature snap-on silicone lids, so water won’t spill inside the cabinet of your CFX3. Just fill the trays, place them in the dedicated ice maker, which can produce ice even if you’ve set the cabinet of the CFX3 for refrigeration, and enjoy ice in a matter of hours.

The power to be present

The Dometic CFX3 gives you the power to change your state of mind and put your well-being first. On-road, off-road, outback or in the backyard, your ordinary and extraordinary adventures will be fuelled by fresher, safer food, less waste and more confidence, giving you the power to be present in any moment.

Maximum efficiency and capacity

You can store an incredible amount of fresh food and drinks in the Dometic CFX3 thanks to the internal compartment design. The CFX3 eliminates the dairy compartment, which means more room for all your favourite foods. Choose how you organise the space with a removable wire divider and enjoy a more even distribution of cool air with the extended evaporator, now on all inner walls of the unit.

Track performance wherever you are

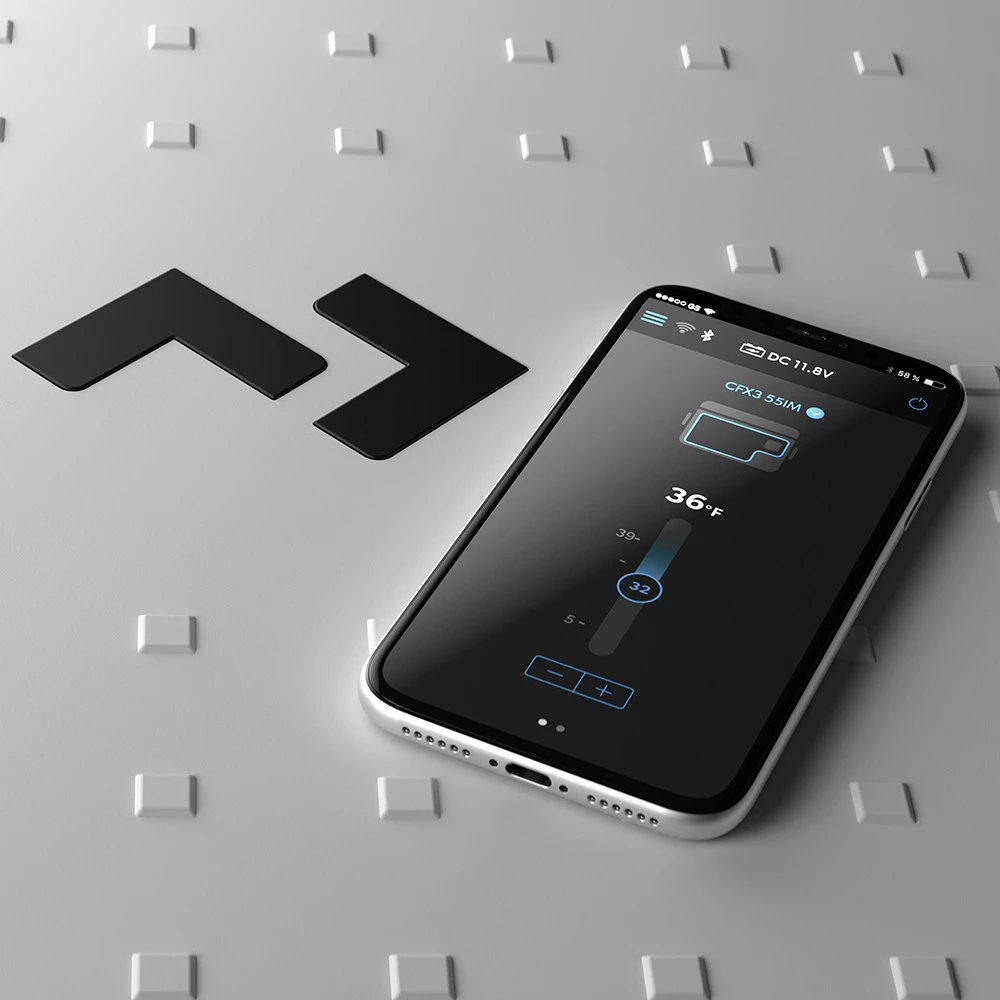

The CFX3 app provides a whole new level of control and connectivity. Download it for free in the App Store or Google Play Store, and connect to your powered fridge/freezer via your smartphone. Control and monitor the temperature of the fridge/freezer remotely, whether it’s from the front seat of your vehicle or in bed after a long day of exploring. Thanks to our user-friendly interface, it’s easier than ever to track the cooling status of your CFX3. If you happen to leave the lid of your CFX3 open, the app will send a notification to your smartphone telling you to close the lid. While powered, the app keeps detailed records of the temperature and power consumption history, so you know your limits on your next journey. Keep food fresh. Go and explore. Enjoy peace of mind.

Digital display for easy management

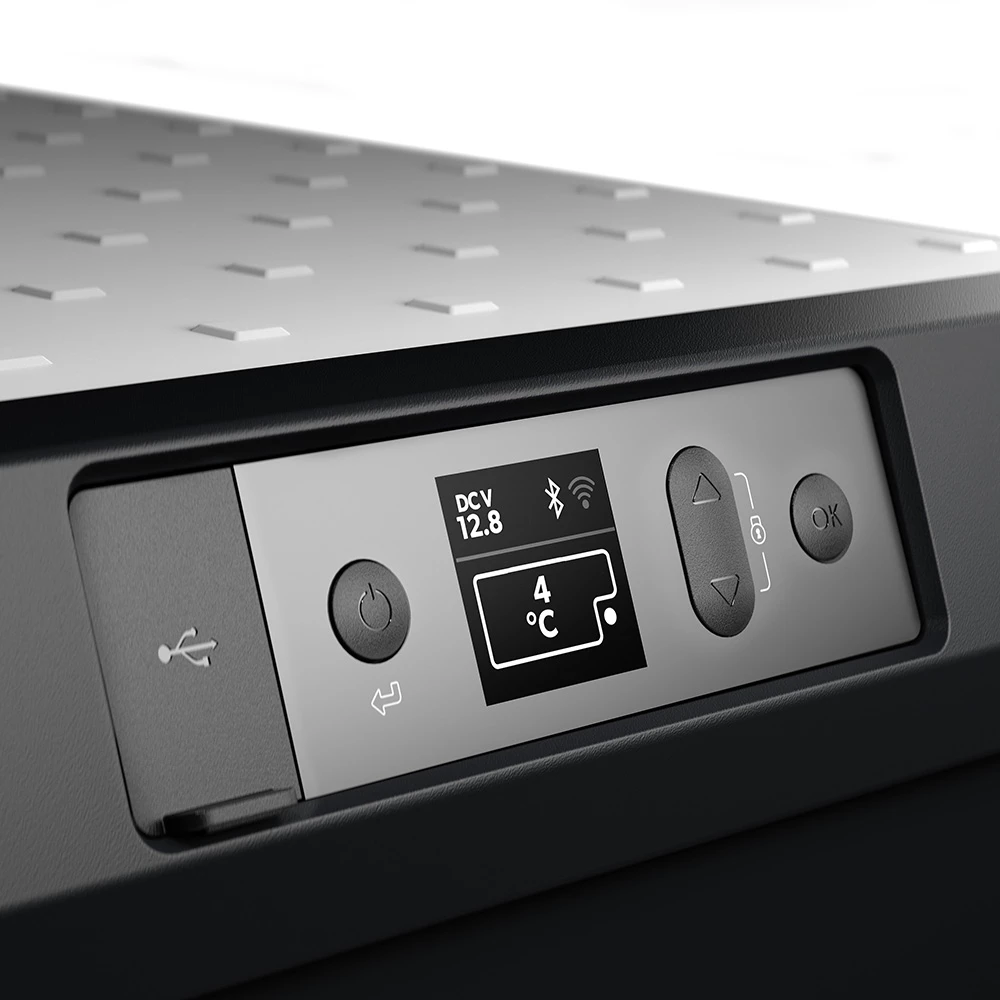

The CFX3 series features an easy to read high-resolution colour display panel which states the temperature and status of the fridge/freezer. Several protection systems are built into the display, including a scratch-resistant cover and IP65 rated housing to protect against dust and water splashes, so you can feel confident wherever you go. The upgraded USB port is now located in the display panel for a faster and more ergonomic way to charge your portable devices. The intuitive user-interface displays the voltage, Bluetooth/WiFi connection status and temperature in colourful graphics. The operating settings of your fridge/freezer can be adjusted at the press of a button with a simple menu.

Don’t stop for ice, make it yourself

The Dometic CFX3 55IM has an independently controlled Rapid Freeze Plate with two custom silicone ice trays. When turned on, the compressor supercools the plate to make ice while maintaining a refrigeration temperature in the rest of the fridge/freezer. Fill the ice trays, secure the snap-fit lid and have ice for drinks by the time you reach your destination.

Dometic CFX3 55IM Portable Fridge/Freezer with Ice Maker Features:

Generous storage capacity of 53L to fit 83 cans
Rapid freeze plate and included silicon ice trays produces ice in a matter of hours

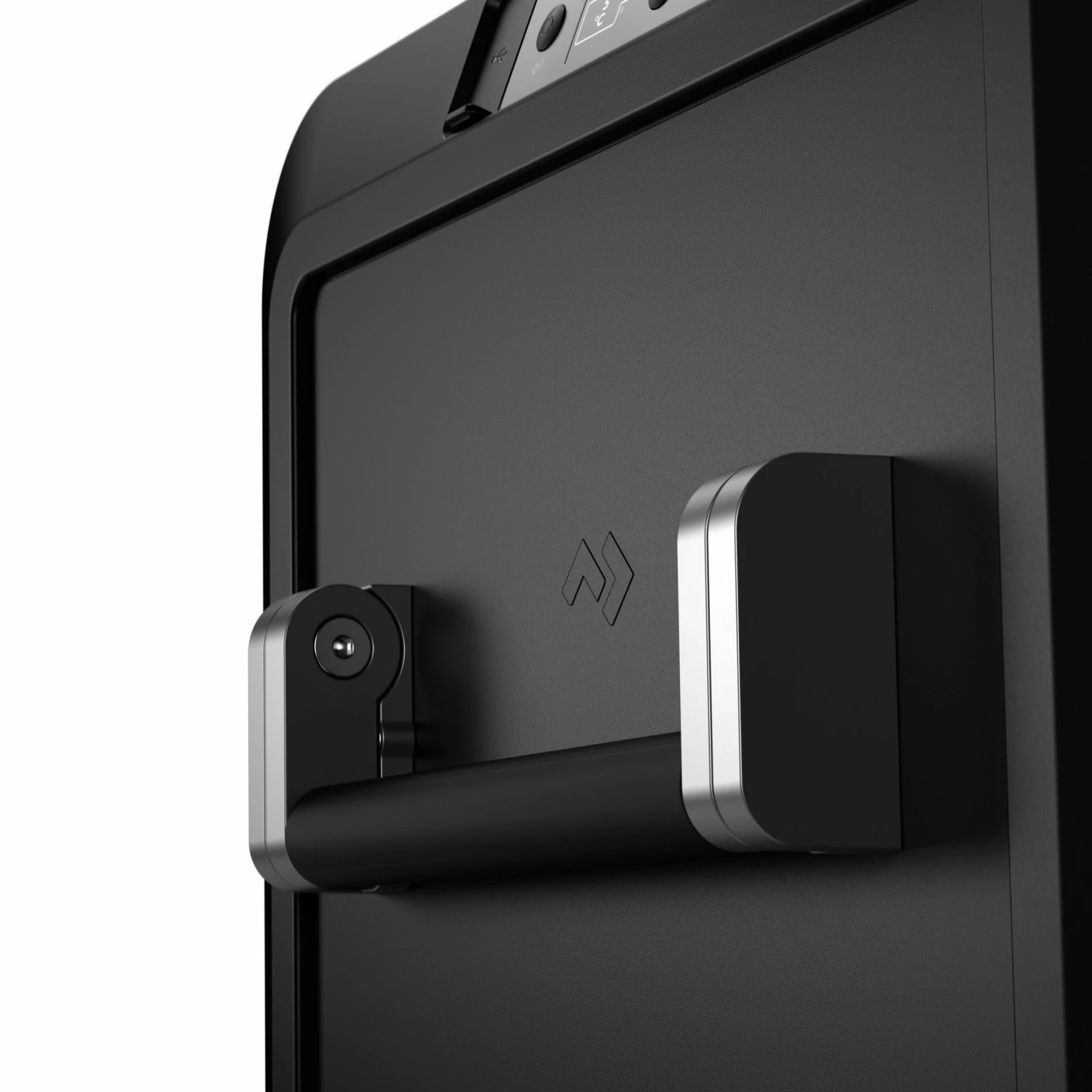

Heavy-duty lightweight ExoFrame construction with fender frame protected edges and aluminium alloy handles
Powerful VMSO3 compressor cooling technology efficiently refrigerates and deep-freezes to -22deg Celsius
Easy-to-read high-resolution colour display
Soft touch buttons enabling seamless control and monitoring of fridge/freezer performance
3-stage battery protection system prevents dead car battery or allows deep draw on dual batteries
CFX3 app allows temperature control via Bluetooth or WiFi and provides performance history

Dometic CFX3 55IM Portable Fridge/Freezer with Ice Maker Specifications:

General

Model: CFX355IM
Single or dual zone: Single
Refrigeration technology: Compressor
Connectivity type: Bluetooth, WiFi
USB port: 5V, 2A
Basket: Yes
Threaded inserts in base for mounting: M6
Drain plug: Yes
Anti condensation coil: Yes
Interior light: Yes, LED
Certificates: RCM
Colour: Slate / Mist

Dimensions:

D x H x W: 455 x 480 x 720mm
Net weight: 21.3kg
Total volume (IEC 62552-3): 55.00L
Gross volume: 55.00L
Total storage volume: 53.00L

Electrical

Input voltage (AC): 100-240 V
Input voltage (DC): 12/24 V
Rated input current (AC): 1.00A at 100V, 0.42A at 240V A
Rated input current (DC): 8.9 A
Rated input power (AC) 52 W
Input frequency 50/60 Hz

Performance

Refrigerant, type: R134a
Refrigerant amount: 45 g
Energy consumption 12 VDC (internal at 4C/Icemaker on (maintenance), Ambient at 32 C): 1.20 Ah/h
Climate class (EN62552): N/T
Insulation type PU (Polyurethane)
